The topic of Cantilever Beam Airfoil Vibration sits at the heart of aeroelastic design, linking structural flexibility with aerodynamic forcing. In this article, we explore how Cantilever Beam Airfoil Vibration relates to Wing Flutter Dynamics, how engineers analyze the coupling between aerodynamics and structural response, and what strategies help manage flutter risk in practical applications. By understanding these dynamics, designers can better predict performance, set safe operating envelopes, and optimize lightweight structures without sacrificing efficiency.
Key Points
- Cantilever Beam Airfoil Vibration serves as a focused lens on aeroelastic interactions at a fixed-root configuration, highlighting how vibration modes influence flutter onset.
- Wing Flutter Dynamics involve energy exchange between aerodynamic forces and structural motion, which can amplify oscillations when damping is insufficient.
- The cantilever boundary condition creates distinctive mode shapes that interact with the airflow in ways that differ from clamped or simply-supported configurations.
- Aeroelastic analysis must account for both structural damping and aerodynamic stiffness to accurately assess margins against flutter.
- Modeling approaches range from analytical theories to high-fidelity simulations; each choice affects how early flutter is predicted and how mitigation options are evaluated.
Foundations of Cantilever Beam Airfoil Vibration
In a cantilever setup, an airfoil or blade is fixed at the root while the tip remains free. Cantilever Beam Airfoil Vibration emerges from the coupling of structural bending and torsional modes with the surrounding flow. The unique boundary condition at the root leads to specific natural frequencies and mode shapes that interact with aerodynamic pressure distributions. Understanding these fundamental vibrations lays the groundwork for assessing flutter risk and designing for sufficient damping and stiffness.
Wing Flutter Dynamics: A Broader Perspective
Wing Flutter Dynamics describe a dynamic instability where aerodynamic forces feed energy into structural modes, causing oscillations to grow with time. Unlike simple vibration, flutter involves a resonance-like process that can occur at operational speeds, often requiring careful attention to structural flexibility, aerodynamic sensitivity, and system damping. While flutter is a broader phenomenon affecting entire wings or blades, the Cantilever Beam Airfoil Vibration perspective highlights how a single-ended support condition can predispose a component to specific flutter pathways if not properly managed.
Comparative Insights for Design
Comparing Cantilever Beam Airfoil Vibration with wing flutter highlights both shared physics and key differences. The vibration of a cantilever beam emphasizes local, mode-specific responses to aerodynamic loading, whereas flutter emphasizes a system-wide energy balance that governs stability margins. Designers should look for how local vibration modes couple with global flow dynamics, how boundary conditions at the root alter effective stiffness and damping, and how material choices influence both natural frequencies and damping characteristics. In practice, the most dangerous flutter scenarios often involve low-frequency bending modes that strongly couple with lift-induced forces, making Cantilever Beam Airfoil Vibration a practical warning sign in early-stage analyses.
Modeling and Analysis Approaches

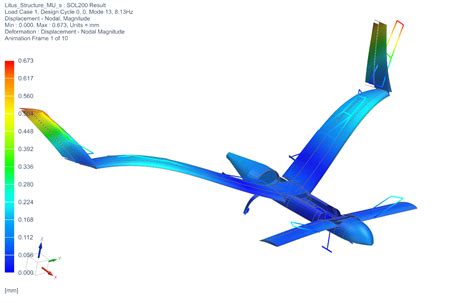

Effective analysis blends physics-based reasoning with numerical methods. A common starting point is a linear aeroelastic model that captures bending and torsion for a cantilever airfoil, then includes an aerodynamic model (such as a quasi-steady approximation or Theodorsen-type functions for unsteady lift). Numerical methods like finite element analysis (FEA) coupled with computational fluid dynamics (CFD) can reveal how specific geometries, materials, and boundary treatments influence flutter margins. Practically, engineers use eigenvalue analyses to identify critical speeds where vibrational modes become unstable, and then validate predictions with time-domain simulations and, when possible, wind-tunnel data. The goal is to map out safe operating envelopes quickly while retaining fidelity for design iterations.
Mitigation and Optimization Strategies
To reduce flutter risk while maintaining performance, several strategies target the energy transfer pathway between air and structure. Increasing structural damping, either through material choice or passive dampers, raises the flutter boundary. Stiffening critical regions near the root or redistributing mass can shift natural frequencies away from dangerous aerodynamic couplings. Flow-control devices, trailing-edge modifications, and tip devices can alter pressure distributions to dampen adverse loads. In Cantilever Beam Airfoil Vibration contexts, tailoring the root boundary condition and ensuring adequate curvature stiffness often yields meaningful margins without excessive weight. The most effective designs typically combine moderate stiffness with sufficient damping and robust aeroelastic margins.
How does the cantilever boundary condition influence flutter risk?
+The cantilever boundary creates a fixed root and free tip, which shapes the mode shapes and natural frequencies. This configuration can enhance bending-torsion coupling and shift flutter-prone frequencies into or near the operating range, making damping and stiffness margins particularly important for safe performance.
What is the practical difference between Cantilever Beam Airfoil Vibration and wing flutter in design terms?
+Cantilever Beam Airfoil Vibration focuses on vibration behavior of a single, fixed-root section, useful for local analysis and component sizing. Wing Flutter is a system-level instability involving the whole wing and its aerodynamic environment. Designers use the cantilever perspective as a stepping stone to assess flutter risk, but they must scale up to full-airfoil or wing-level aeroelastic models to confirm safety margins.
Which modeling approach best predicts flutter for cantilever airfoils?
+No single approach fits every case. A practical path often starts with a linear, reduced-order aeroelastic model to identify critical modes and speeds, followed by targeted high-fidelity simulations (FEA/CFD) for confirmation. Theories like Theodorsen or piston-theory variants can provide intuition, while full 3D simulations capture nonlinearities and mass/load distributions that matter in real designs.
What practical steps can engineers take to mitigate flutter risk in cantilever sections?
+Start with a robust aeroelastic assessment to establish margins, then implement damping enhancements and targeted stiffness adjustments near the root. Consider mass balance changes, trailing-edge or tip devices to modify pressure distribution, and ensure materials and joints maintain predictable damping across operating conditions. Prototyping and wind-tunnel validation help confirm that the chosen mitigation strategy remains effective under real-world variability.
